Automatic Scanning Wireless Signal Detector/1.2G2.4G5.8GNetwork
Signal Detecting
Description:

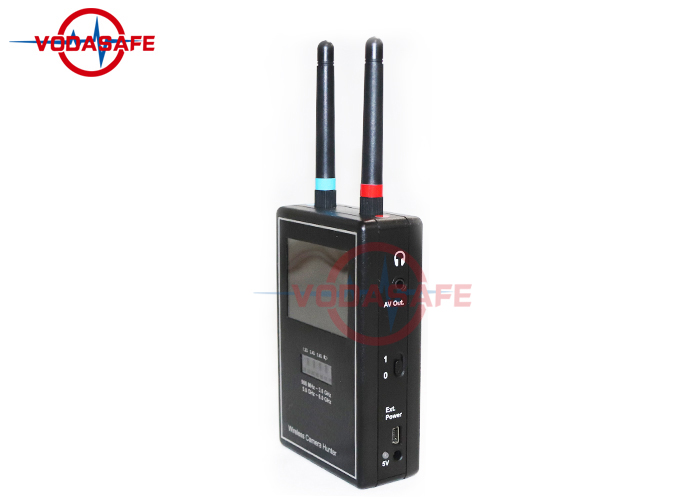

VS123 is a video scanner and wireless camera for 900 MHz - 3.0 GHz,
5.0 - 6.0 GHz. It is a small device with built-in battery and
automatic scanning function. The detection range is 900MHz-6GHz,
and there are two rows of LED lights under the LCD screen. Mainly
for 1.2GHz 2.4Ghz5.8GHz image, VS-123 is a reduced version of
VS-125, using dry battery, the test distance is about 50 meters,
battery charging time can be used for about 1.5 hours in 6 hours.
Featured Function:
1. Install Battery
Battery compartment is located in the rear side. Remove the battery
cover, install AAA / UM-4 battery x 4 according to the + – indication, then put on the battery cover. This device is
available both dry battery and rechargeable battery.
Note: Never connect the battery charger or external power bank when to
use dry battery inside.
2. Switch On
The power switch is located in the center of right side. Set at 1
to switch on, set at 0 to switch off.
3. Auto Scan
After switch on, this device will scan wireless video signal from
900 MHz to 6.0 GHz automatically. There are 2 rows LED displays
under the LCD screen.
1) The upper row is scanning band indication and battery low indication. Three blue LEDs indicate 1.2GHz - 2.4GHz - 5.8GHz
three frequency bands individually for user to know the scanning
status clearly. The LED at very right side is low battery warning
(Bat Low), it will go red when battery power runs down.
2) The lower row is indication of scanning and image lock. During scanning, the green LEDs will shuttle to-and-fro. When
receive video signal, user can lock the image, then green LED will
still.
4. Image Display
When detects wireless video signal, the image will display on
screen and the frequency of the image will appear in the left
bottom side of screen. The duration of image display on screen is
depended on the video signal strength, the stronger the longer.
This device keeps scanning, the image will fade away when scan to
other frequency and the screen will shut down to save power. When
detects next video signal, the screen will light up again to
display the image.
5. Lock Image
When detects significant image, press and hold the (+) button in left side over 1.5 seconds to lock the image. When hear
beep once, the image is locked. The scan will stop and the blue and
screen LEDs will still. The frequency on screen will be fixed and
blink in black and white.
6. Fine Tune Image
After image locked, press the buttons + – in left side to tune the
image at its best resolution. Press the (+) once, beep once and you
will find the frequency in the left bottom side of screen will be
increased. Press the (–) once, beep once and you will find the
frequency in the left bottom side of screen will be decreased.
7. Audio Demodulation
This is unique technology in its kind. Plug the earphone into the
jack in right upper side to hear the audio of image. If you can not
hear the audio, press and hold the (–) button in left side over 1.5
seconds to shift the audio frequency.
When hear beep once, the bottom of screen will appear L, it means
the frequency of audio demodulation is 6.5 MHz. Press and hold the
(–) button in left side over 1.5 seconds again, the audio
demodulation will shift to R, it means the frequency of audio
demodulation is 6.0 MHz.
Most of the audio of wireless video cameras are 6.0 and 6.5 MHz. If
you can not hear the audio both setting of L and R, the scanned
wireless camera might not have audio demodulation. Press and hold
the (–) button in left side, the audio demodulation will be
shifting between L and R (6.5 and 6.0 MHz) over every 1.5 seconds.
8.Unlock Image
After knowing the content of image clearly, press and hold the (+) button in left side over 1.5 seconds to unlock the image. When
hear beep once, the image is unlocked. The scan will continue and
the blue and screen LEDs will start to blink. The frequency will
not appear on screen until the image appears on screen.
9. Video/Audio Output
The jack in right upper side is shared by earphone and AV output.
Plug in the AV output cable and connect it with DVR to record the
scanned image and audio.
10. Warning Mode Setting
This device has three kinds of warning mode,
1) Beep and vibration
2) Vibration
3) Beep, factory default setting is “Beep and vibration”. To change the
warning mode, switch off this device. First press the (–) button in left side, and use another hand to switch on, this
device will enter “Warning mode setting”.
Press the (–) button in left side once, the warning mode will shift from 1. Beep
and vibration à 2. Vibration à 3. Beep cyclic. After set the
preferred warning mode, press both (+) (–) buttons to save your setting.
11. External Power Bank
This device has a USB port in right bottom side for connecting with
Power bank (5V 1.5A or more) to continue the scan job when the battery power is
exhausted.
¢ Notice 1: Never connect with computer or notebook which do not have enough
power for this device.
¢ Notice 2: Remove the DRY battery inside before connecting with power bank or
battery charger.
Specifications * Specification may change without notice.
| Dimension | L 11.6 x W 7 x T 3.3 cm (including antenna: L 19 cm) |
| Weight | about 215g (not include battery) |
| Power | 1. Switching power adaptor 2. AAA / UM-4 dry battery or rechargeable battery 3. Support external power bank (5V 1.5A and more) |
| Battery charging time | About 4 hours for full charge |
| Battery life | About 2 hours after full charge |
| Detecting Frequency | 900 MHz – 3.0 GHz, 5.0 – 6.0 GHz |
| Scan indication | Image and Frequency of scanned video signal |
| Warning mode | 1. Beep and vibration 2. Silent detection through earphone |
| Scanning band | 1.2 GHz - 2.4 GHz - 5.8 GHz three bands cycle scanning |
| Detecting Distance | up to 200 feet (depending on output power of source transmitter) |
Package Contents
| 1. | Video scanner | 4. | Switching power adaptor x 1 |
| 2. | Detachable SMA antenna x 2 | 5. | Earphone x 1 |
| 3. | AV output cable x 1 | 6. | Rechargeable batteries x 4(optional) |
