Gps Remote Control Military Signal Jammer/Wi-Fi2.4G5.8G Network
Signal Jammer
Description:

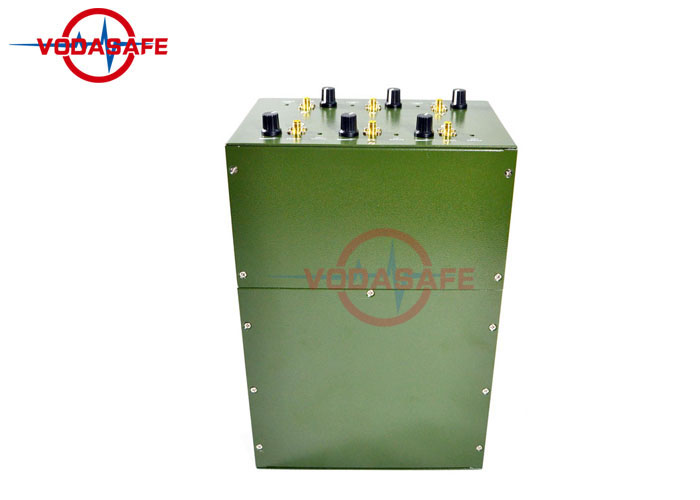

This signal shielding device is a 5W signal shielding device. The
conventional setting is six-way frequency. It is also divided into
European and American models. The European model is 2G900MHz
1800MHz3G2100MHz4G700MHz and UHF and VHF. The frequency of the
American model is 850MHz1900MHz3G2100MHz4G700MHz and VHFUHF. Both
frequency settings are based on the most frequently used
frequencies. If you have other requirements for the frequency band,
we can also provide customized services according to your needs.
For example, GPS signal frequency segment, remote signal frequency
segment, Wi-Fi signal frequency segment and Lojack and drone signal
frequency segment, with built-in battery, this is a portable high
power shield, its most portable place There is a built-in battery
that can work continuously for two hours after the point is full.
If you are interested in this item, you can contact us.
Features:
- lightweight backpack that can be carried through difficult terrain
without burden
- Portable jammer built in a backpack Configuration
- Covers wideband frequency range includes VHF/UHF radio
- Electronic blanket jamming of control channels of explosive devices
- Provides a minimum protective range of 40m
- Can be used in manpack or vehicular configuration
- Effective in use for protection of mobile column of personnel on
foot or moving in vehicles
Applications:
Anti-terror units, bomb squads, VIP protection, protection of
convoys, Military forces, SWAT teams, police forces, anti-drug
units, riot control units
Specification:
| Total Output Power | 30 Watt |
| Output power | Adjustable could adjust the jamming range |
| Cover Radius | 10-60m(under Signal level ≤-85dBm)@according to the signal density
mobile network |
| Jamming type | Sweep Jamming |
| Antenna Type | 3dBi external omni-directional |
| Power Supply | AC adapter (50 to 60Hz/100 to 240V AC –DC27V) Battery 27V20Ah |
| Working Time | Not-stop Working(Build-in AC power DC27V and Battery 27V20Ah
working 2 hours) |
| Electric Filed (SAR) | Compatible with ICNIRP Standards (Human safe) |
| Operating Temp | -20 to +50℃ |
| Storage Temp | -40 to +60℃ |
| Humidity | 5%-80% |
| Product Dimension(LXWXH) | 310 x 205x 120mm not include antennas |
| Weight | appr.13kg ( for 3dbi OMNI antennas) |
Europe Type frequency for Europe, Asia, Australia, Middle East,
Africa.
1. GSM900MHz:925-960MHz; 5W
2. 2GGSM1800MHz:1805-1880MHz; 5W (GSM/CDMA/DCS)
3. 4GLTE700MHz:790-821MHz; 5W
4. 3G2100MHz:2100-2170MHz; 5W (3GUMTS/WCDMA/TD-SCDMA/CDMA)
5. VHF Radio:135-175MHz; 5W
6. UHF Radio:400-470MHz;5W
Total Output Power: 30W
We could supply customized service by your detail requirements
about frequencies setting.
Optional Frequencies:
1.Lojack:173.03MHz
2.CDMA450MHz:430-450MHz/460-470MHz;
3.GPS/GLONASS/GALILEO:L1 L2 L3 L4 L5;
4.Wireless Camera:1.2G ,2.4G,5.8G;
5.Car remote control: 433MHz/315MHz/868MHz;
6.Walkie-Talkie:VHF,UHF;
7. SAT Satellite Phones:1520-1670MHz;
Package contents:
1pcs Signal Jammer
1pcs Battery charger
1pcs manpack bag
6pcs Antenna
